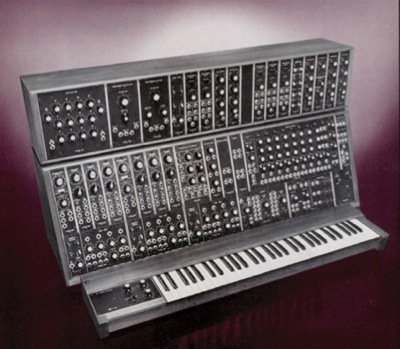

Synthesizer 55
A classic. Seven oscillators, a sequencer, and a lot of accessories in a two part, walnut case. Notably absent are such modules as: reverb, envelope follower, sample and hold, and a ring modulator. The inclusion of five ADSRs and five VCAs suggests that Moog expected users to shape sounds additively, in addition to using the VCF for subtractive synthesis. The sequencer and related modules (961 and 962) are part of the standard package.
This is the updated version of the Synthesizer IIIc where the old 901 series oscillators have been replaced with the newer 921 series oscillators.
Synthesizer 55
Module complement:
902 VCA (5)
904A low pass VCF
905B high pass VCF
914 fixed filter bank
911 ADSR (5)
911A dual trigger delay
914 fixed filter bank
921 VCO
921A VCO controller (2)
921B VCO (6)
923 noise source
960 sequencer
962 sequential switch
992 control voltages panel
993 trigger voltages panel
994 multiples
995 triple attenuator
half-height modules:
mixer (3)
961 trigger interface
trunk lines
power switch
keyboard
